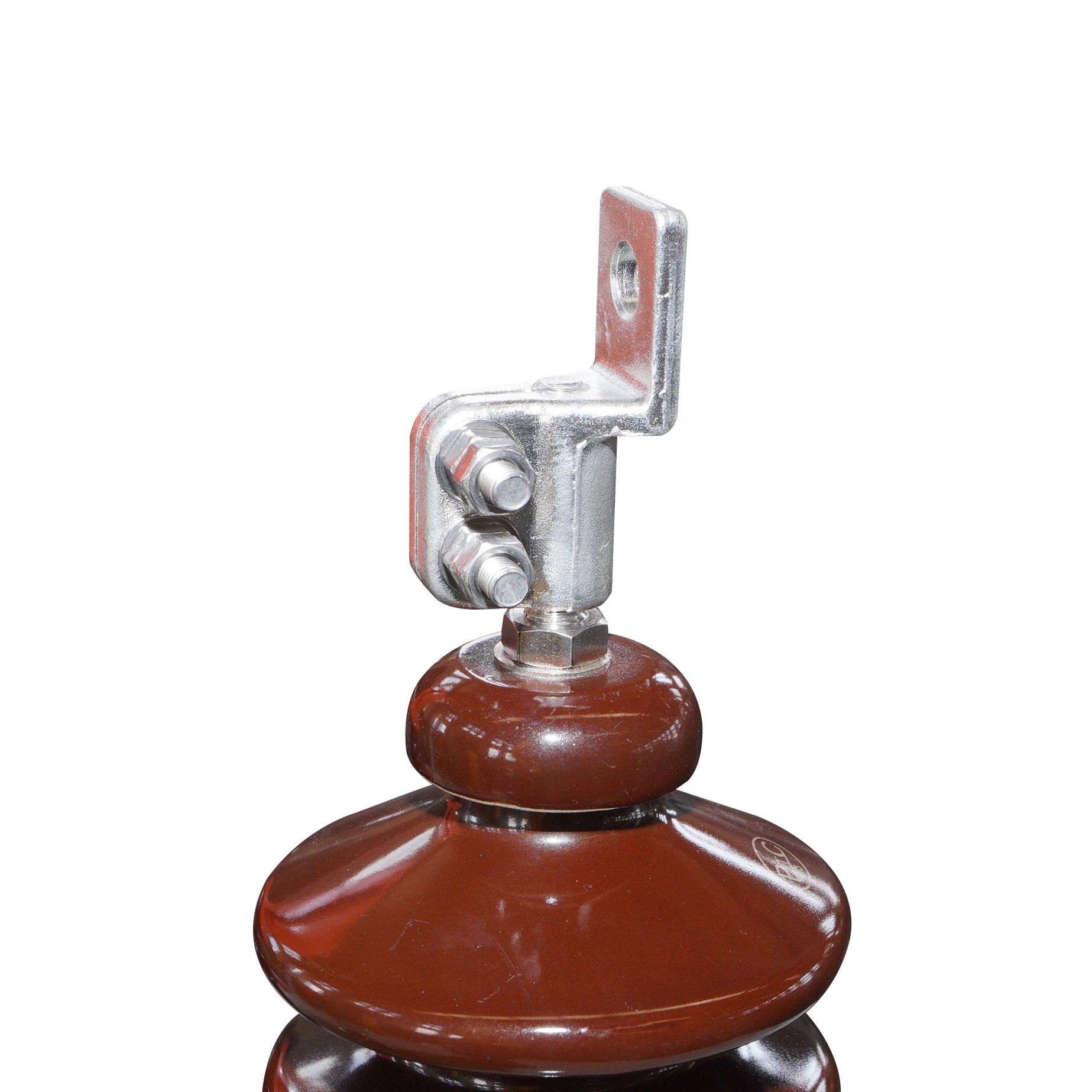

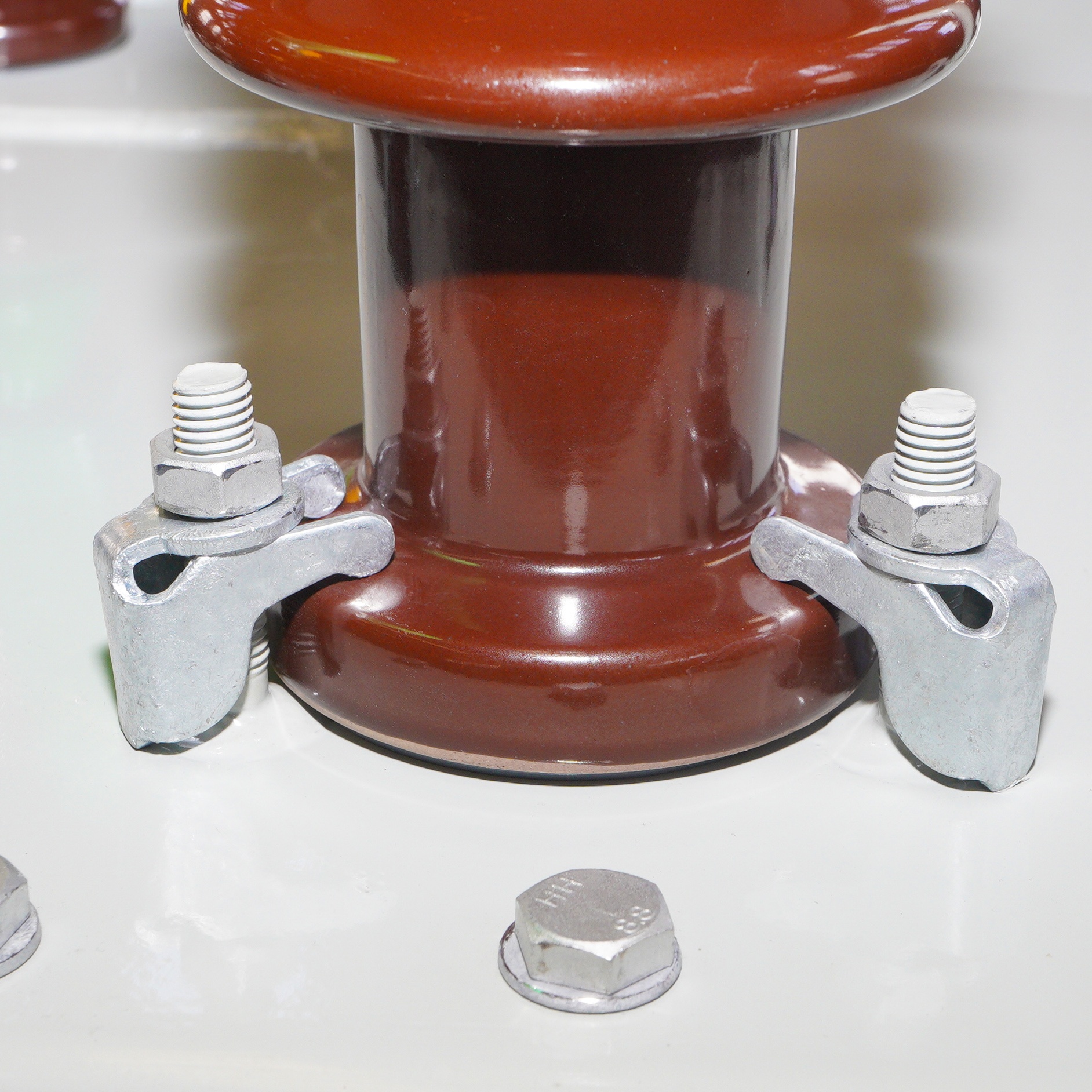

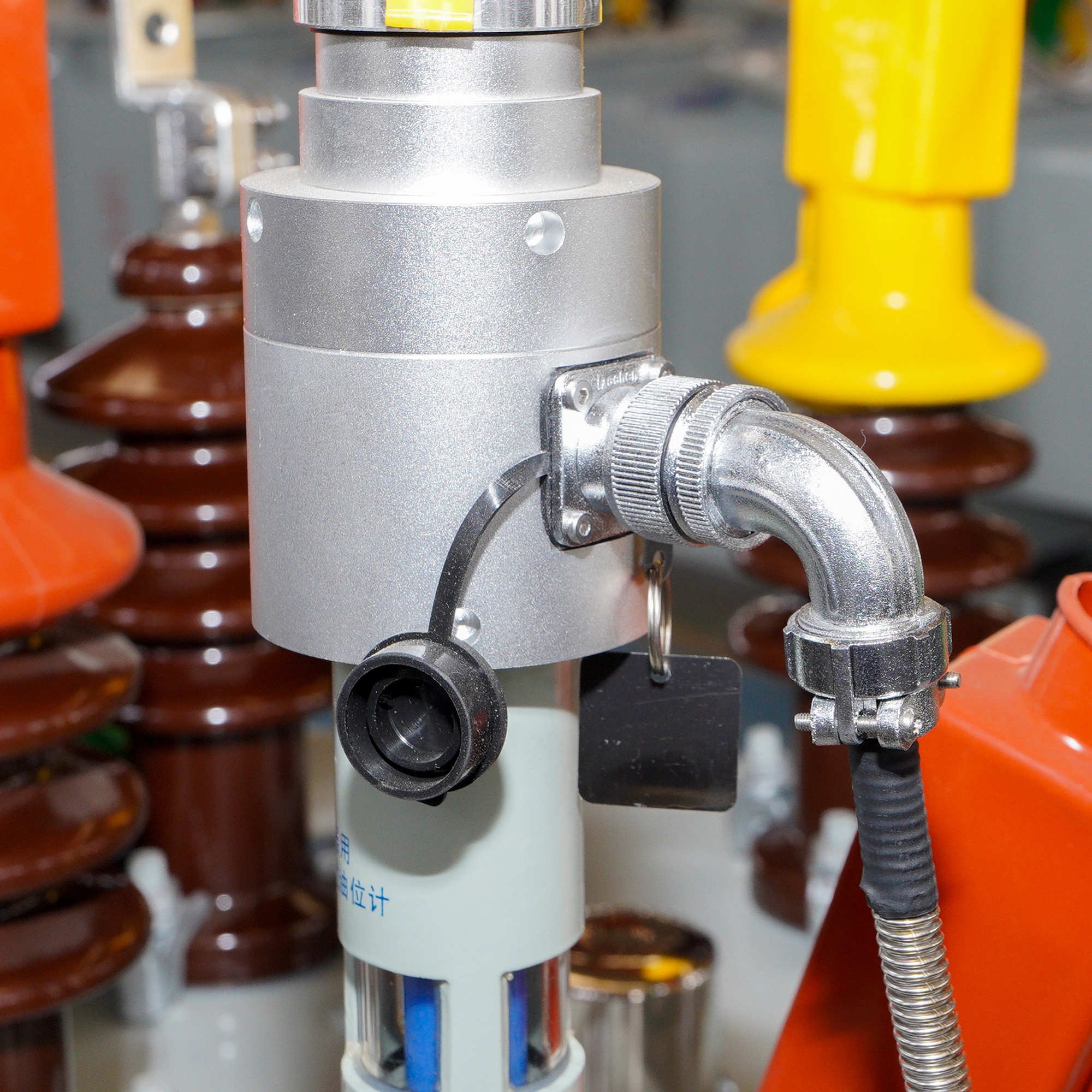

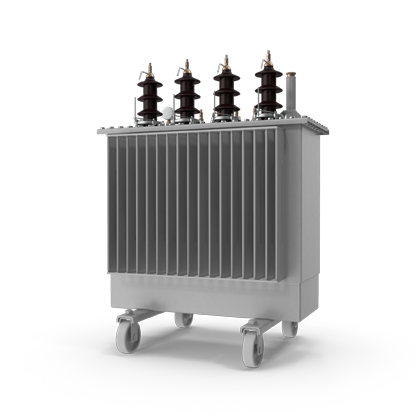

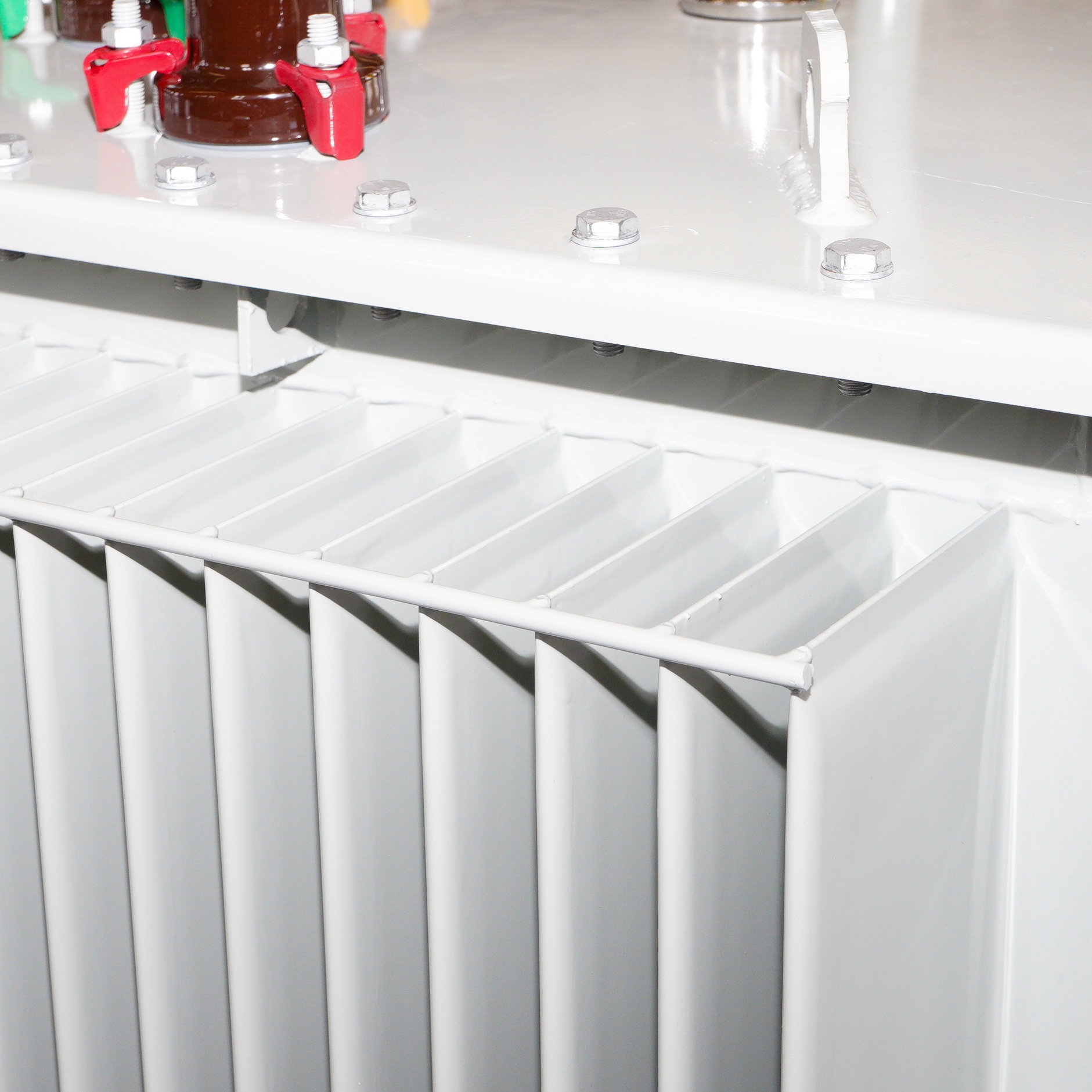

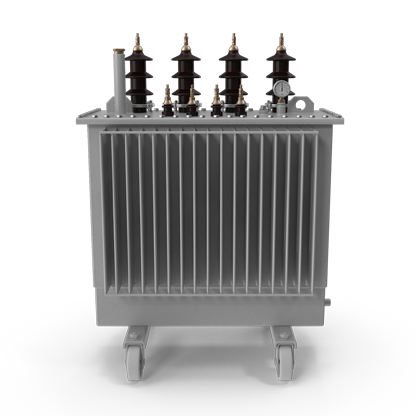

Product Introduction

S-series: refers to transformers with a "three-dimensional wound core" or "stepped laminated core" structure, but "S" in older models often directly represented "three-phase". In the context of S11, it usually refers to a core using high-quality grain-oriented silicon steel sheets and stepped laminated technology.

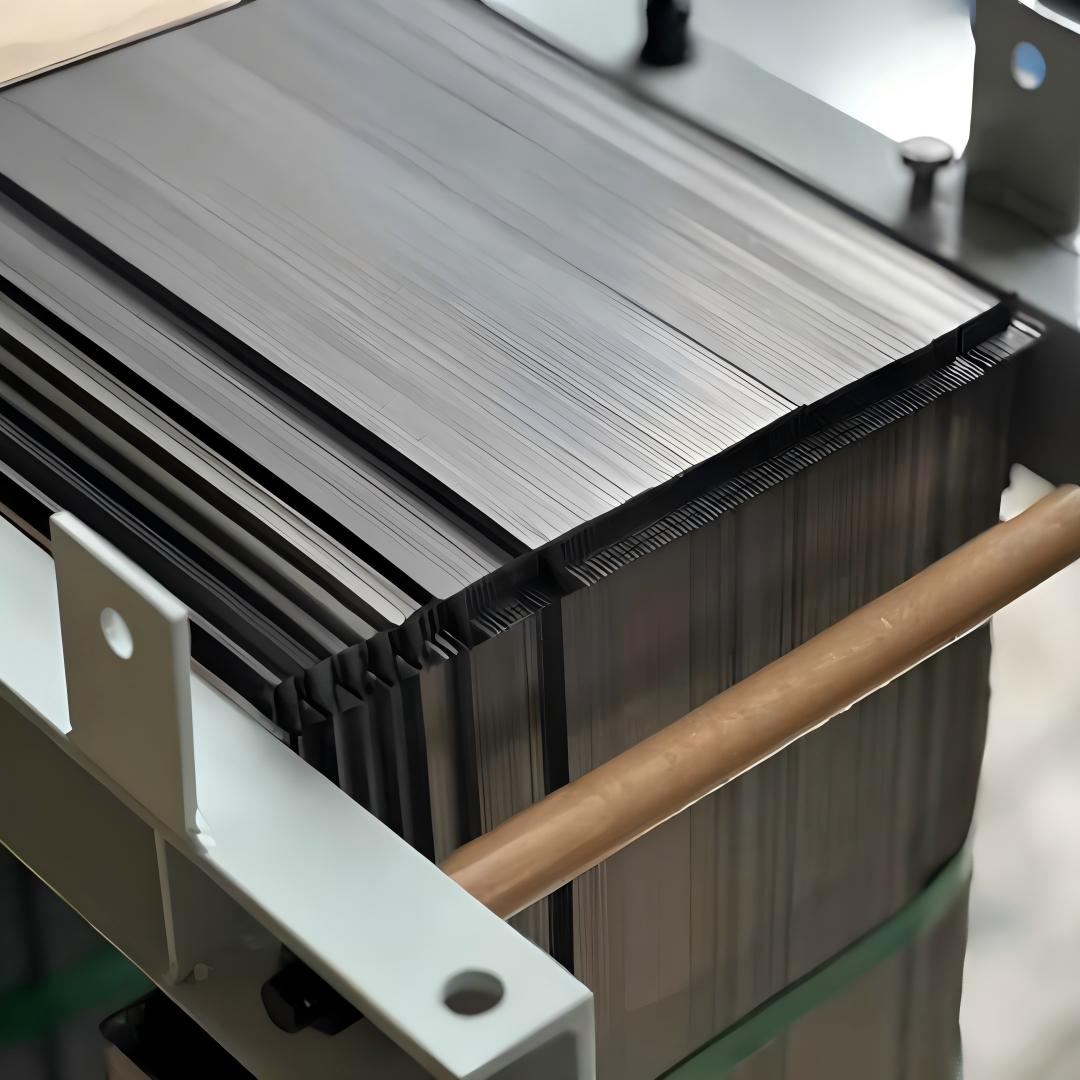

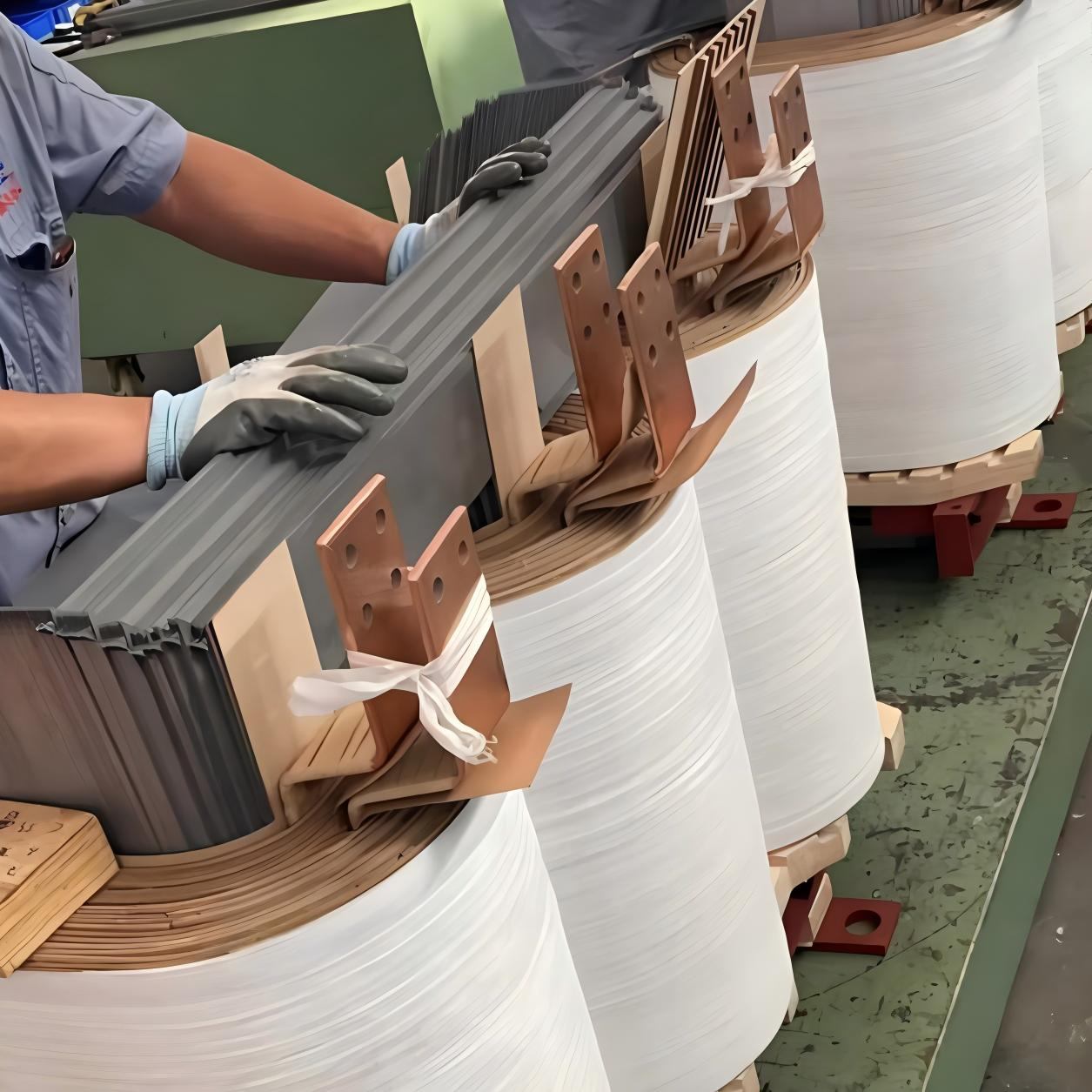

Stacked core: This refers to the transformer's magnetic circuit core being constructed from stacked, stamped silicon steel sheets. This technology is mature, structurally robust, and highly efficient in production.

Excitation magnetic tape voltage regulation: This is a key feature of this product. It refers to the ability to make minute adjustments to the output voltage by changing the number of turns in the transformer's high-voltage winding (usually via a tap changer) to adapt to fluctuations in the grid voltage.

Application Scope

• This transformer is widely used in power transmission and distribution systems requiring 50Hz frequency and rated voltage of 10kV and below, and is particularly suitable for

• Urban and rural power grid renovation and construction: As a core piece of equipment in the distribution network, providing power to communities and towns.

• Industrial and mining enterprises: Providing power to production equipment in factories and mines.

• Commercial buildings and infrastructure: Providing power to shopping malls, hospitals, schools, airports, and train stations.

• Agricultural irrigation and rural electricity use: Suitable for applications with relatively stable load changes and low requirements for real-time voltage regulation.

• Step-up substations for photovoltaic, wind power, and other new energy power plants (as part of a box-type transformer).

Ordering instructions 【 when placing order, provide product model, rated capacity, rated voltage, high and low voltage phase number, frequency, link set label, qualitative, loss 】

Technical Parameters

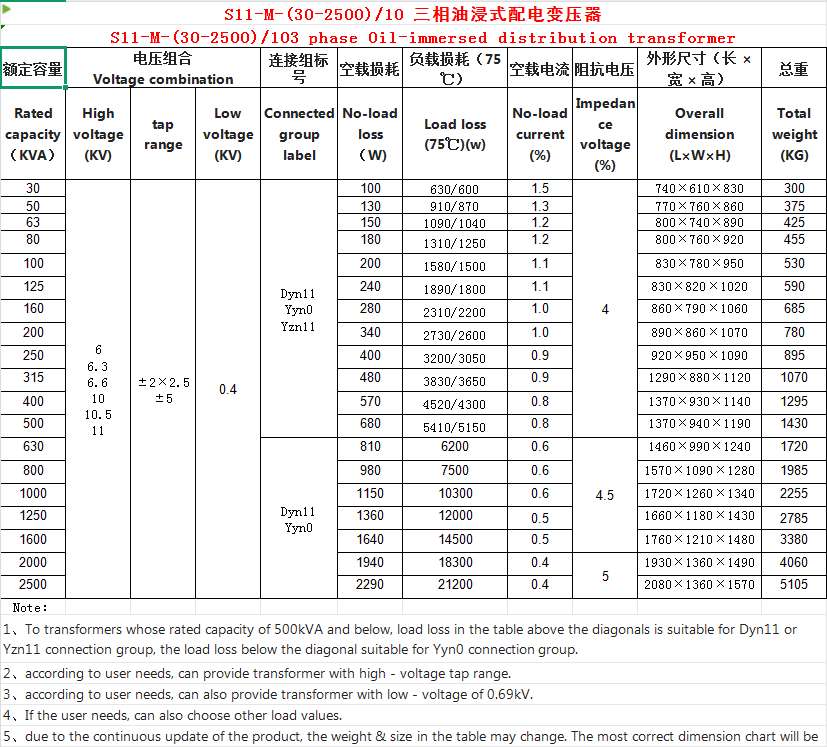

6kV, 10kV class S11 series oil-immersed non-excitation regulating voltage distribution transformer technical parameters

Note

① For three-phase transformers with a Rated capacity of 500kVA or less, the load loss values above the diagonal line in the table are applicable to Dyn11 or Yzn11 connection groups, and the load values below the diagonal line are applicable to Y yn0 connection groups.

② When the average annual load rate of the transformer is between 35% and 40%, the highest operating efficiency can be achieved by adopting the losses in the table.

6kV, 10kV class S13 series oil-immersed non-excitation regulating voltage distribution transformer technical parameters

Note

① For three-phase transformers with a rated capacity of 500kVA or less, the load loss values above the diagonal line in the table are applicable to Dyn11 or Yzn11 connection groups, and the load values below the diagonal line are applicable to Y yn0 connection groups.

 ② When the average annual load rate of the transformer is between 35% and 40%, the highest operating efficiency can be achieved by adopting the losses in the table.

 6kV, 10kV class S20 series level 2 energy efficiency oil-immersed non-excitation regulating voltage distribution transformer technical parameters

Note

① For three-phase transformers with a rated capacity of 500kVA or less, the load loss values above the diagonal line in the table are applicable to Dyn11 or Yzn11 connection groups, and the load values below the diagonal line are applicable to Y yn0 connection groups.

 ② When the average annual load rate of the transformer is between 35% and 40%, the highest operating efficiency can be achieved by adopting the losses in the table.

③ The empty load loss listed in the table is in line with the level 3 energy efficiency regulations in Table 1 of GB20052-2020.
